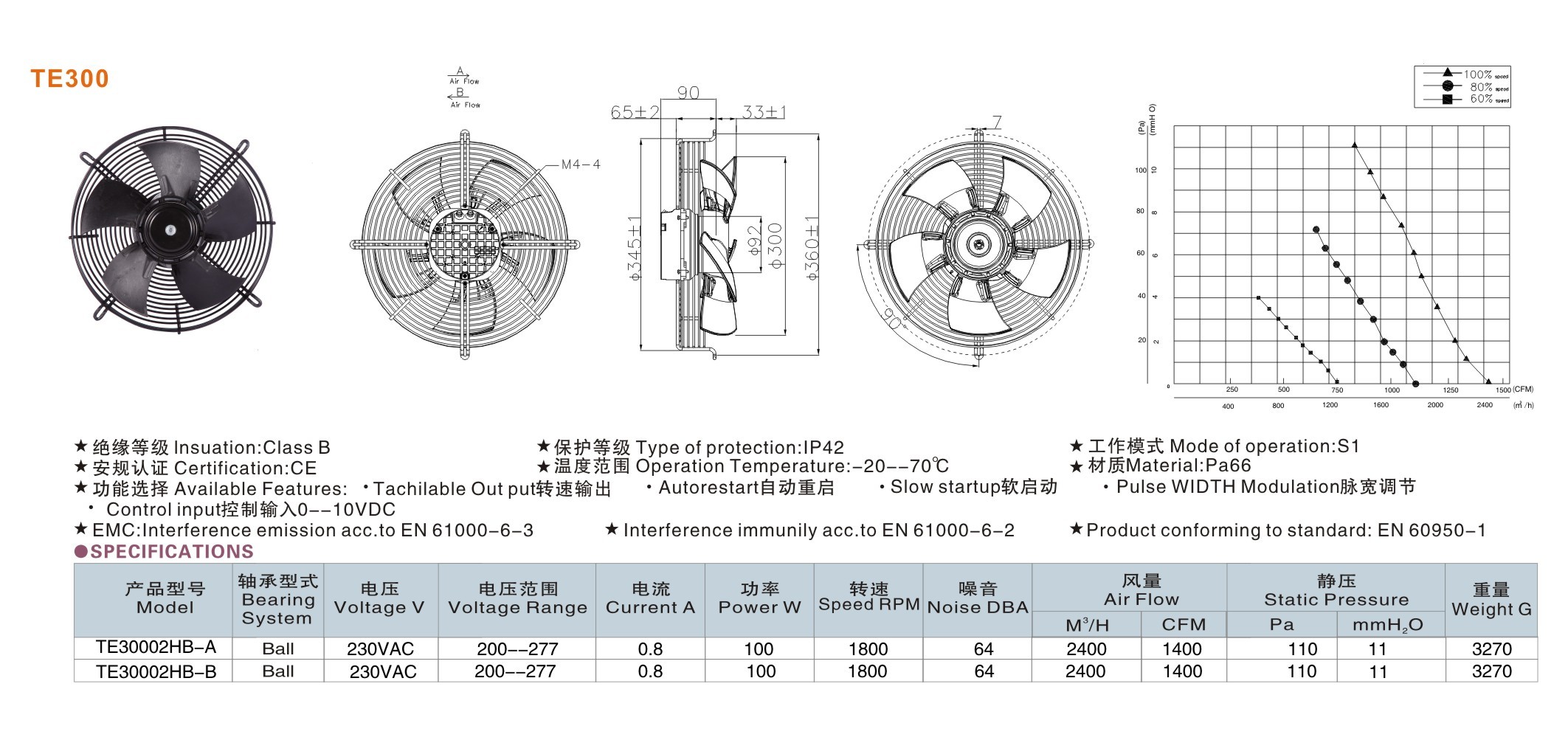

TE300

概要:

所属分类:

网罩轴流系列


产品详情

★绝缘等级Insuation:Class B
★保护等级Type of protection:IP42
★工作模式Mode of operation:S1
★安规认证Certification:CE
★温度范围Operation Temperature:-20--70℃
★材质Material:Pa66
★功能选择Available Features:·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 610o0-6-2
★Product conforming to standard: EN 60950-1

SPECIFICATIONS

产品型号
Model
轴承型式
Bearing System
电压
Voltage V
电压范围
Voltage Range
电流
Current A
功率
Power W
转速
Speed RPM
噪音
Noise DBA
风量
Air Flow
静压
Static Pressure
重量
Weight G
M3/H CFM Pa mmH2O
TE30002HB-A Ball 230VAC 200--277 0.86 137 2100 61.2 2186 1302 299.4 30.5 3270
TE30002HB-B Ball 230VAC 200--277 0.86 137 2100 61.2 2186 1302 299.4 30.5 3270
