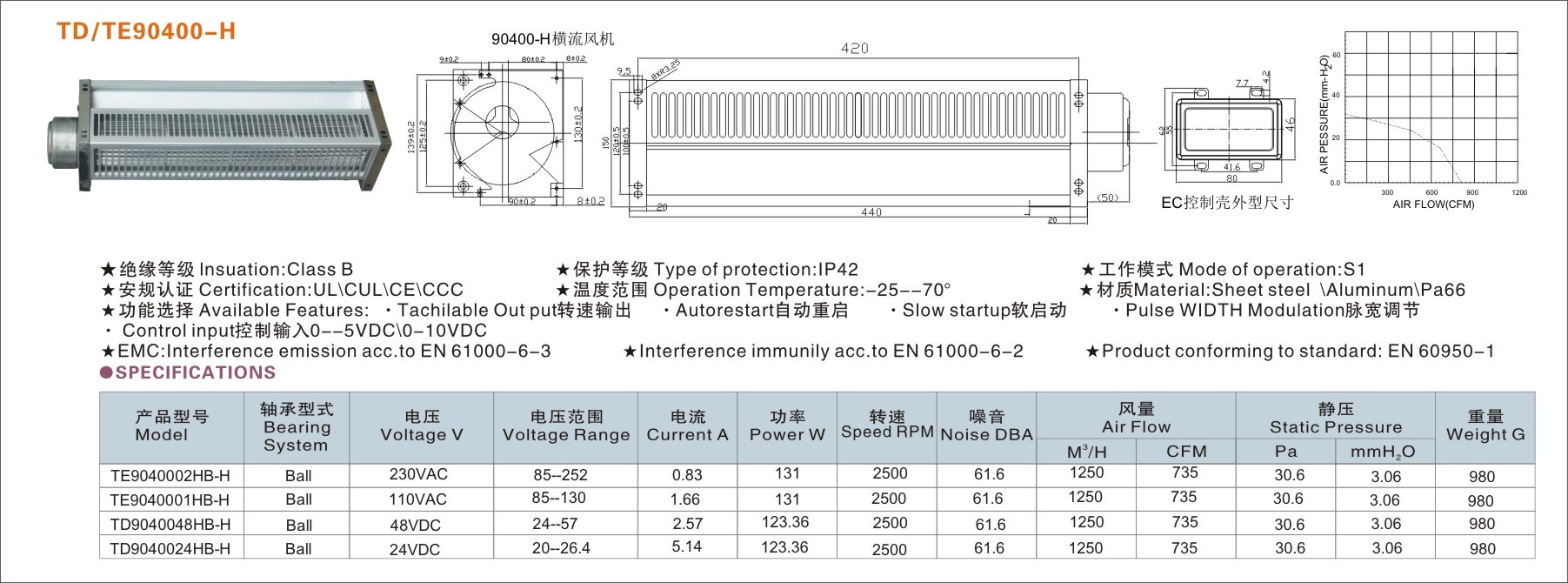

TD/TE90400-H

概要:

所属分类:

横流(贯流)系列


产品详情

★绝缘等级Insuation:Class B
★保护等级Type of protection:IP42
★工作模式 Mode of operation:S1
★安规认证Certification:CE
★温度范围Operation Temperature:-25--70℃
★材质Material:Sheet steel\Aluminum\Pa66
★功能选择AvailableFeatures:·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--5VDC\0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 610oo-6-2
★ Product conforming to standard: EN 60950-1
SPECIFICATIONS

产品型号Model 轴承型式Bearing System 电压Voltage V 电压范围Voltage Range 电流Current A 功率Power W 转速Speed RPM 噪音Noise DBA 风量Air Flow 静压Static Pressure 重量Weight G
M³/H CFM Pa mmH₂O
TE9040002HB-H Ball 230VAC 85--252 0.83 131 2500 61.6 1250 735 30.6 3.06 980
TE9040001HB-H Ball 110VAC 85--130 1.66 131 2500 61.6 1250 735 30.6 3.06 980
TD9040048HB-H Ball 48VDC 24--57 2.57 123.36 2500 61.6 1250 735 30.6 3.06 980
TD9040024HB-H Ball 24VDC 20--26.4 5.14 123.36 2500 61.6 1250 735 30.6 3.06 980
