产品详情
★绝缘等级Insuation:Class B
★保护等级Type of protection:IP42
★工作模式 Mode of operation:S1
★安规认证Certification:CE
★温度范围Operation Temperature:-20--70%
★材质Material:PA66
★功能选择AvailableFeatures:·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 61000-6-2
★ Product conforming to standard: EN 60950-1

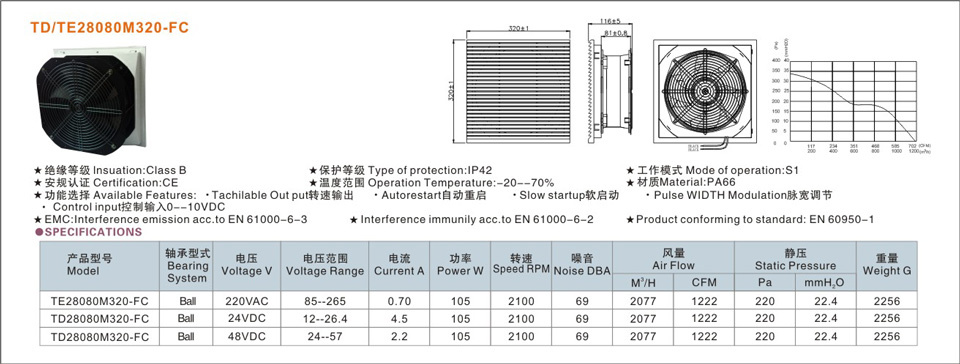

SPECIFICATIONS
| 产品型号 Model |
轴承型式 Bearing System |
电压 Voltage V |
电压范围 Voltage Range |
电流 Current A |
功率 Power W |
转速 Speed RPM |
噪音 Noise DBA |
风量 Air Flow |
静压 Static Pressure |
重量 Weight G |
||
| M³/H | CFM | Pa | mmH₂O | |||||||||
| TE28080M320-FC | Ball | 220VAC | 85--265 | 0.70 | 105 | 2100 | 69 | 2077 | 1222 | 220 | 22.4 | 2256 |
| TD28080M320-FC | Ball | 24VDC | 12--26.4 | 4.5 | 105 | 2100 | 69 | 2077 | 1222 | 220 | 22.4 | 2256 |
| TD28080M320-FC | Ball | 48VDC | 24--57 | 2.2 | 105 | 2100 | 69 | 2077 | 1222 | 220 | 22.4 | 2256 |
