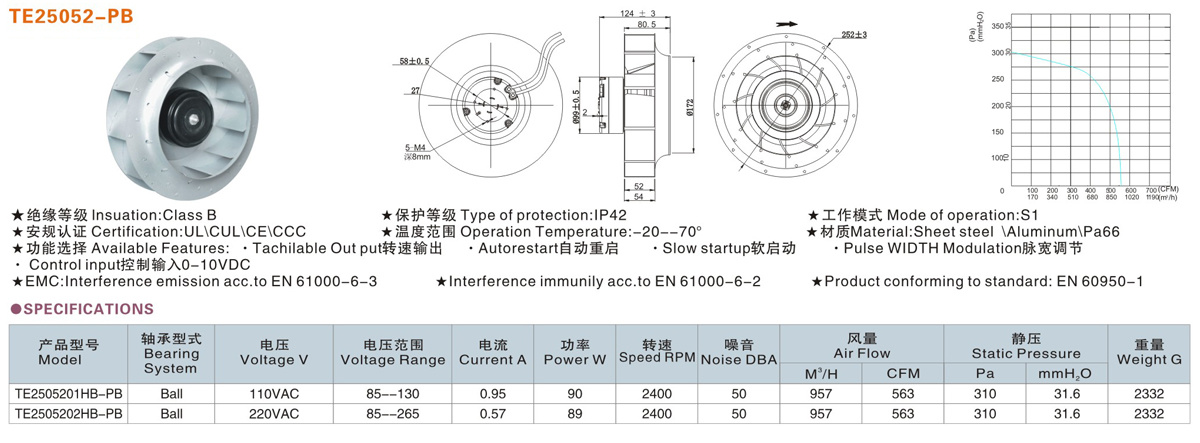

TE25052-PB

概要:

所属分类:

后倾式离心风机系列


产品详情

★绝缘等级Insuation:Class B
★保护等级Type of protection:IP42
★工作模式 Mode of operation:S1
★安规认证Certification:UL\CUL\CE\CCC
★温度范围Operation Temperature:-20--70°
★材质Material:Sheet steel\Aluminum\Pa66
★功能选择AvailableFeatures:·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 61000-6-2
★ Product conforming to standard: EN 60950-1
SPECIFICATIONS

产品型号
Model
轴承型式
Bearing System
电压
Voltage V
电压范围
Voltage Range
电流
Current A
功率
Power W
转速
Speed RPM
噪音
Noise DBA
风量
Air Flow
静压
Static Pressure
重量
Weight G
M3/H CFM Pa mmH2O
TE2505201HB-PB Ball 110VAC 85--130 0.95 90 2400 50 957 563 310 31.6 2332
TE2505202HB-PB Ball 220VAC 85--265 0.57 89 2400 50 957 563 310 31.6 2332
