产品详情
★绝缘等级Insuation:Class B
★保护等级Type of protection:IP42
★工作模式 Mode of operation:S1
★安规认证Certification:CE
★温度范围Operation Temperature:-25--70°
★材质Material:Sheet steel\Aluminum\Pa66
★功能选择AvailableFeatures:·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 61000-6-2
★ Product conforming to standard: EN 60950-1

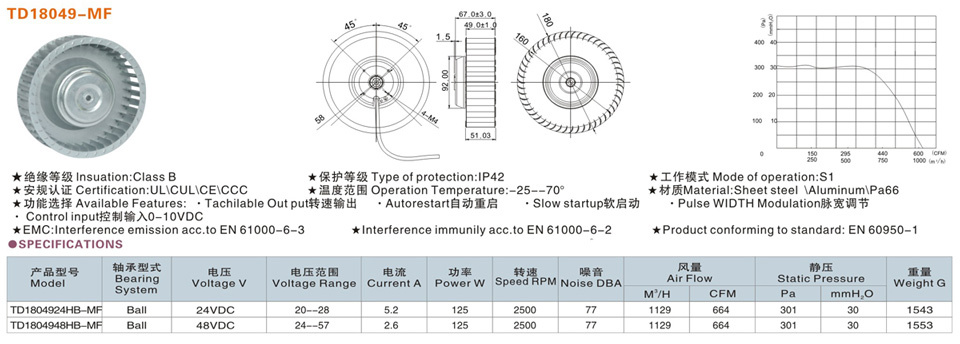

SPECIFICATIONS
| 产品型号Model | 轴承型式Bearing System | 电压Voltage V | 电压范围Voltage Range | 电流Current A | 功率Power W | 转速Speed RPM | 噪音Noise DBA | 风量Air Flow | 静压Static Pressure | 重量Weight G | ||
| M³/H | CFM | Pa | mmH₂O | |||||||||
| TD1804924HB-MF | Ball | 24VDC | 20--28 | 5.2 | 125 | 2500 | 77 | 1129 | 664 | 301 | 30 | 1543 |
| TD1804948HB-MF | Ball | 48VDC | 24--57 | 2.6 | 125 | 2500 | 77 | 1129 | 664 | 301 | 30 | 1553 |
