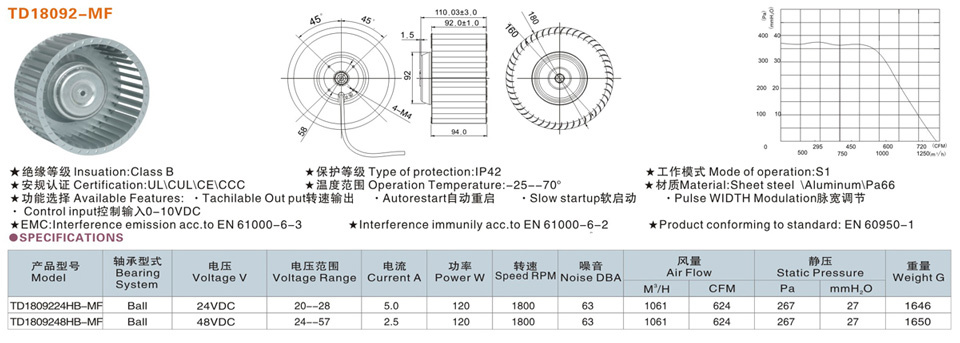

TD18092-MF

概要:

所属分类:

前倾式离心风机系列


产品详情

★绝缘等级Insuation:Class B
★保护等级Type of protection:IP42
★工作模式 Mode of operation:S1
★安规认证Certification:CE
★温度范围Operation Temperature:-25--70°
★材质Material:Sheet steel\Aluminum\Pa66
★功能选择AvailableFeatures:·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 610oo-6-2
★ Product conforming to standard: EN 60950-1
SPECIFICATIONS

产品型号
Model
轴承型式
Bearing System
电压
Voltage V
电压范围
Voltage Range
电流
Current A
功率
Power W
转速
Speed RPM
噪音
Noise DBA
风量
Air Flow
静压
Static Pressure
重量
Weight G
M3/H CFM Pa mmH2O
TD1809224HB–MF Ball 24VDC 20--28 5.0 120 1800 63 1061 624 267 27 1646
TD1809248HB–MF Ball 48VDC 24--57 2.5 120 1800 63 1061 624 267 27 1650
